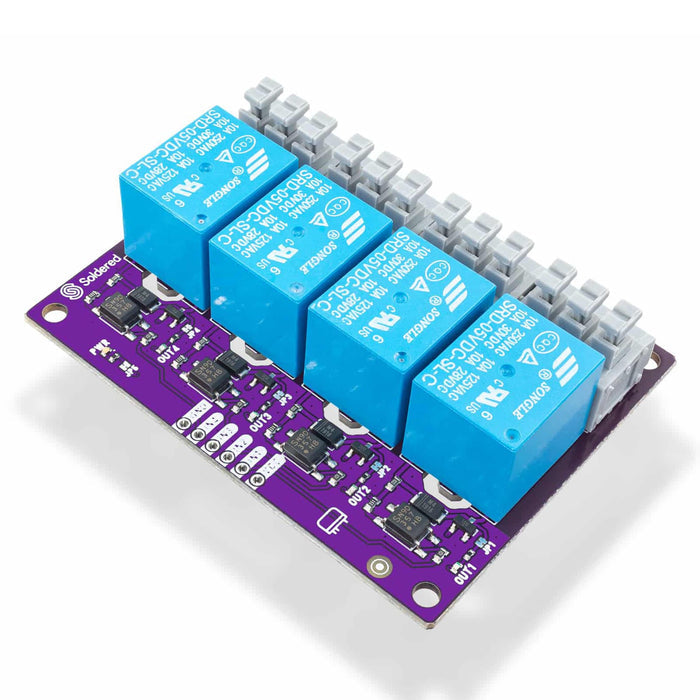

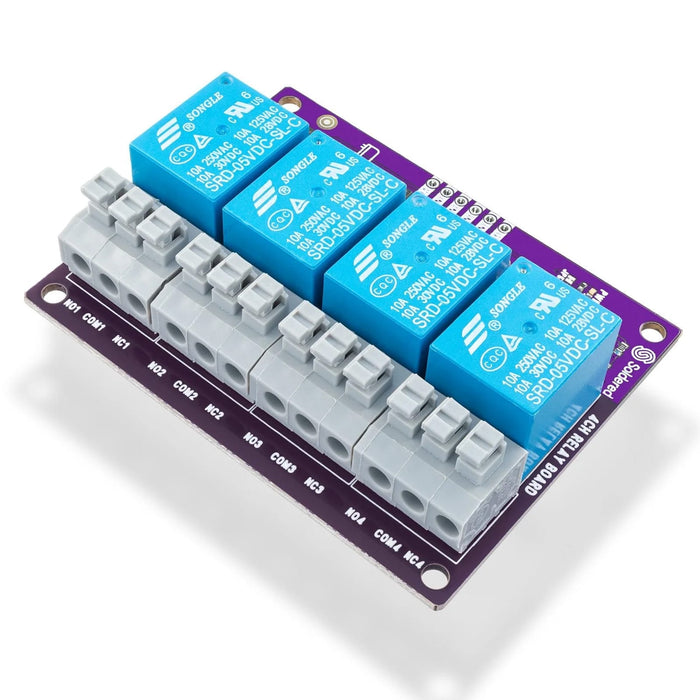

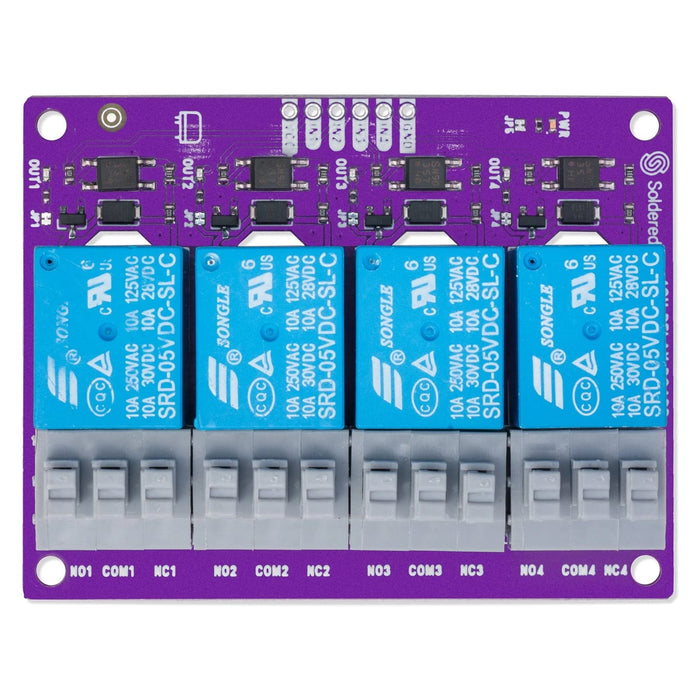

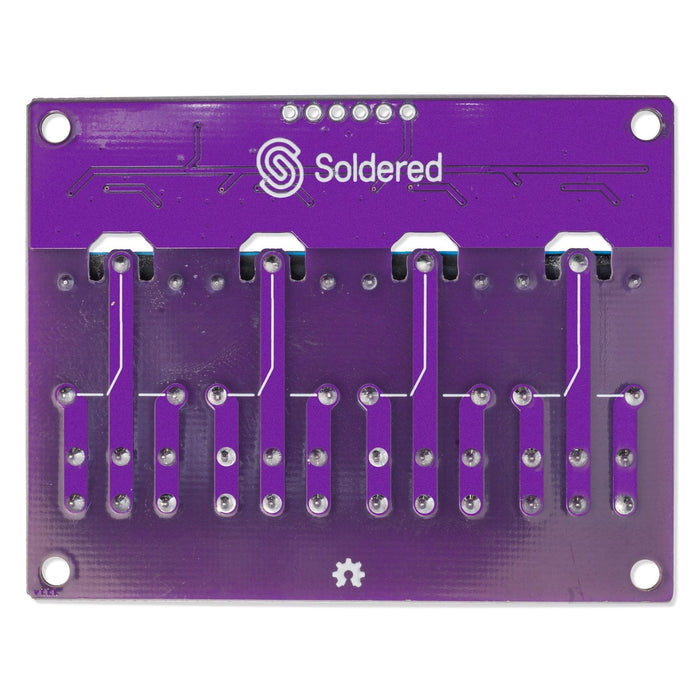

4-Channel Relay Board

This 4-Channel Relay Board makes it easy to control multiple high-voltage or high-current devices from a microcontroller, providing a simple and isolated switching solution for home automation, robotics, and other electronics projects.

Did you ever want to turn on and off a device that needs large current or voltage? Whether operating on DC or AC, a relay is what you need.

A relay is actually an electronic switch that is activated by a signal we send from a microcontroller. This module further simplifies the whole process because it contains everything you need for the relay to work, and you just have to connect it to the microcontroller and power supply. You don't have to think about voltages and currents, insulation between high and low voltage or grounding, everything is already taken care of on the board. This product has 4 relays.

View our full range of Soldered Electronics products here.

Features

• 4 relay module for switching high current and voltage devices

• Simplifies relay integration with pre-configured circuitry
• Works with both DC and AC power supplies
• Built-in isolation between control and switched circuits
• No additional components required for operation
• Voltage and current protection included on board
• Easy connection to microcontroller and power supply

Specifications

• Max. DC voltage and current: 30V, 10A
• Max. AC voltage and current: 250V, 10A
• Number of relays: 4 relays
• Dimensions: 54 x 70 mm

Resources

• Full product documentation
• Pinout drawing
• Hardware details
• Arduino library documentation
• Open source hardware files
• Getting started with Arduino

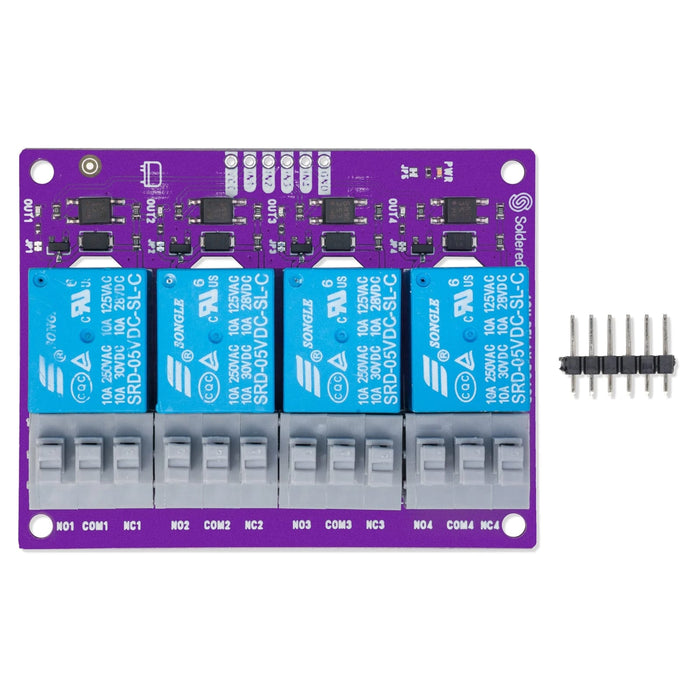

Package Contents

• 1x 4-Channel Relay Board
• 1x Header strip
