Arduino UNO Media Carrier
Arduino UNO Media Carrier
The UNO Media Carrier adds dual-camera, display, and audio connectivity to UNO Q and Ventuno Q boards, making it easy to build computer vision, multimedia, AI, and interactive edge-device applications.
<>Extend the multimedia capabilities of your Arduino UNO Q and Ventuno Q by enabling advanced vision, display, and audio applications with plug-and-play simplicity.

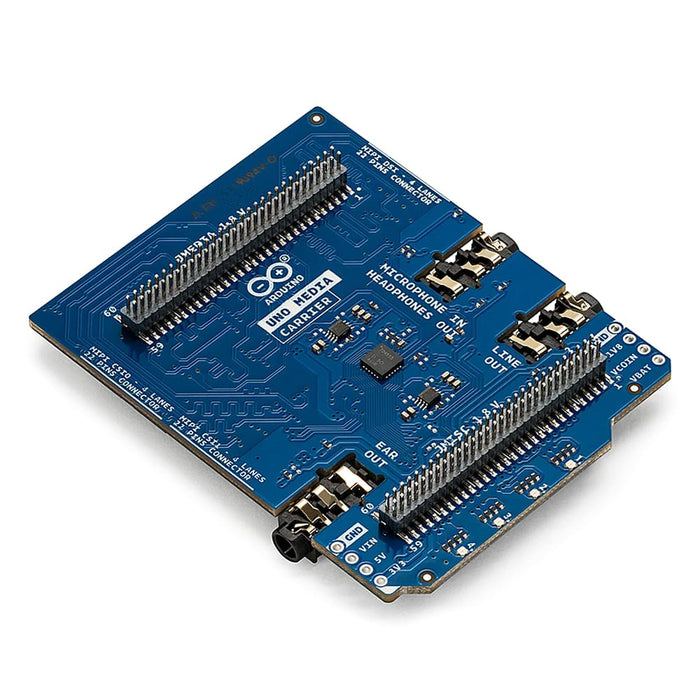

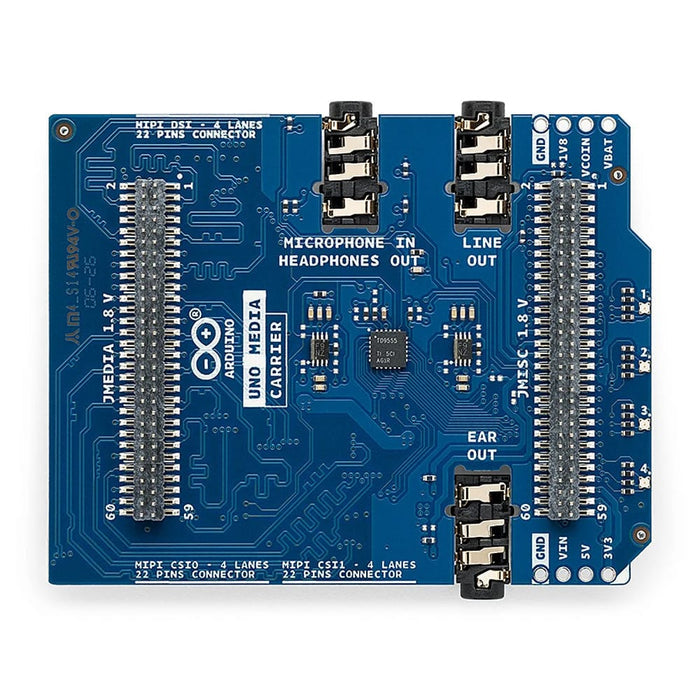

The Arduino UNO Media Carrier connects to the board through the JMEDIA and JMISC high-speed connectors - both passthrough - to keep all pins available for additional modules or carriers.
Equipped with two MIPI CSI connectors for IMX219 22-pin MIPI CSI 4 lanes cameras (such as the Raspberry Pi Camera Module 2), it opens the door to dual-camera computer vision projects, from stereo depth mapping to multi-angle image capture. A MIPI DSI interface provides compatibility with 22-pin 4 lanes MIPI DSI displays, making it easy to add rich, interactive visual output to your projects without additional adapters.
For audio, UNO Media Carrier includes three dedicated 3.5mm jacks: one combined microphone input and headphone output for flexible audio capture and monitoring, one line out for connecting to amplifiers or powered speakers, and one ear out enabling Class-AB differential earpiece output.
Arduino UNO/Ventuno not included
Features
- Add capabilities, not limits: Passthrough connectors mean all pins remain available to further expand your UNO board.
- Plug-and-play integration: vastly compatible with Arduino, Raspberry Pi, and other popular brands’ peripherals.
- Affordable multimedia expansion: ideal for prototyping and for educators teaching image, video, and audio processing.
- High-speed video and audio I/O: top performance in a compact form factor.
- Fast path from proof-of-concept to product validation: no custom PCB design required, easy hardware integration and setup, well-documented, reliable.

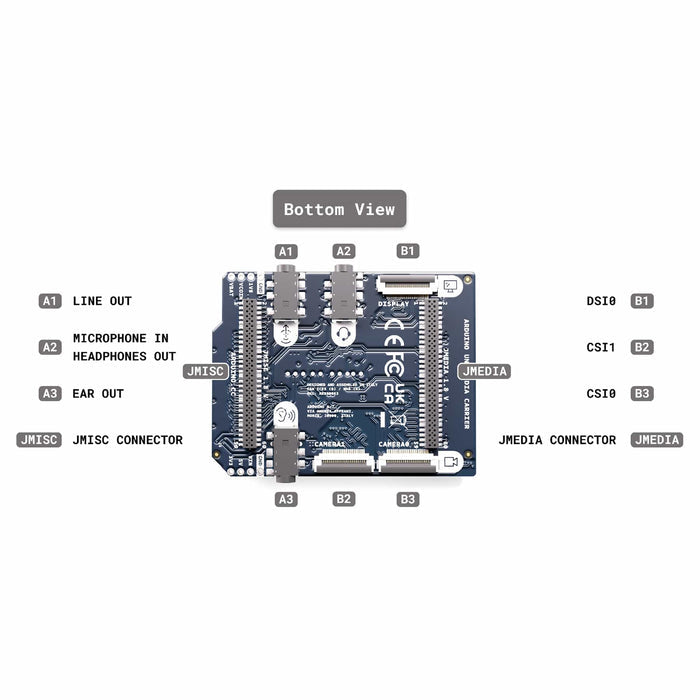

Interfaces
| Camera | 2× MIPI-CSI 22-pin, 4-lane camera connectors; Raspberry Pi camera compatible; officially supports cameras based on the IMX219 sensor |
| Display | 1× MIPI-DSI 22-pin, 4-lane display connector; Waveshare display compatible; officially supports the Waveshare 8-DSI-TOUCH-A display |
| Audio | 1× MIC-IN / Headphones Out 3.5 mm jack; 1× Line Out 3.5 mm jack; 1× Earphones Out 3.5 mm jack |
| Host Board Connection | JMEDIA high-speed connector; JMISC high-speed connector; passthrough design maintains pin availability |
| Other Interfaces | I2C; PSSI; GPIO |
| Notable Support | Additional camera and display modules may be supported in future software updates |
Resources
- Datasheet
- Part number: Arduino ASX00083
- EAN: 7630049205871

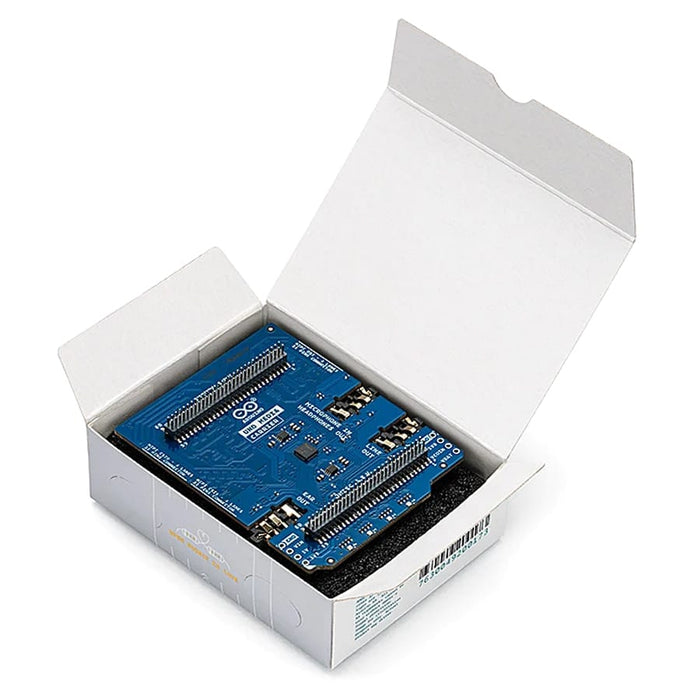

Package Contents
- 1x Arduino UNO Media Carrier
Arduino UNO/Ventuno not included
