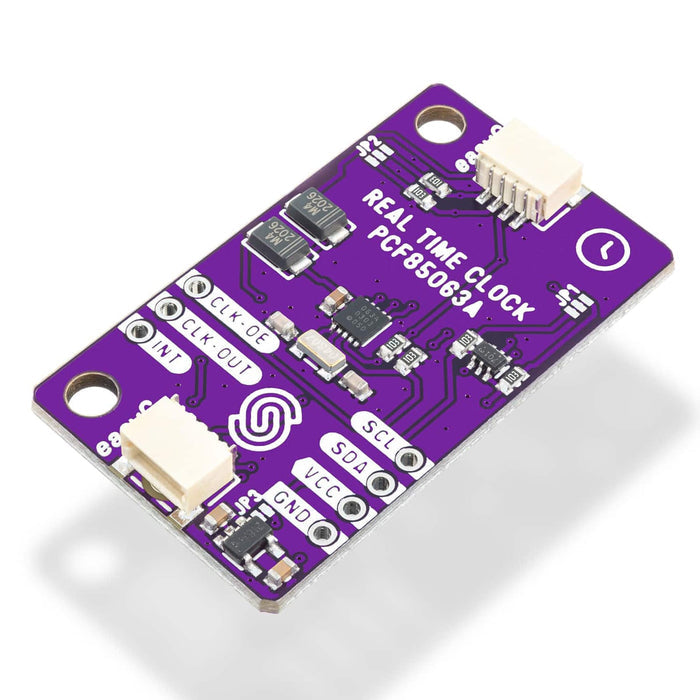

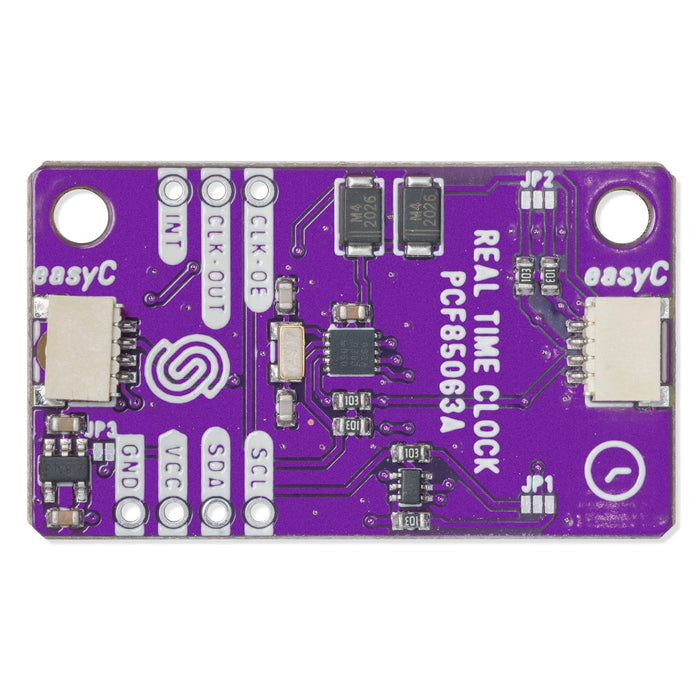

Real Time Clock RTC PCF85063A Breakout

This Real Time Clock (RTC) Breakout provides accurate, battery-backed timekeeping with alarm and interrupt functions.

The RTC (Real Time Clock) is a device that carefully and precisely tracks time and dates. It is extremely precise, so it is more suitable for long-term time tracking than clocks on microcontrollers. This breakout can work with an extremely low current and thanks to the alarm feature and interrupt pin, it will allow a microcontroller to enter sleep mode until its awaken by this RTC.

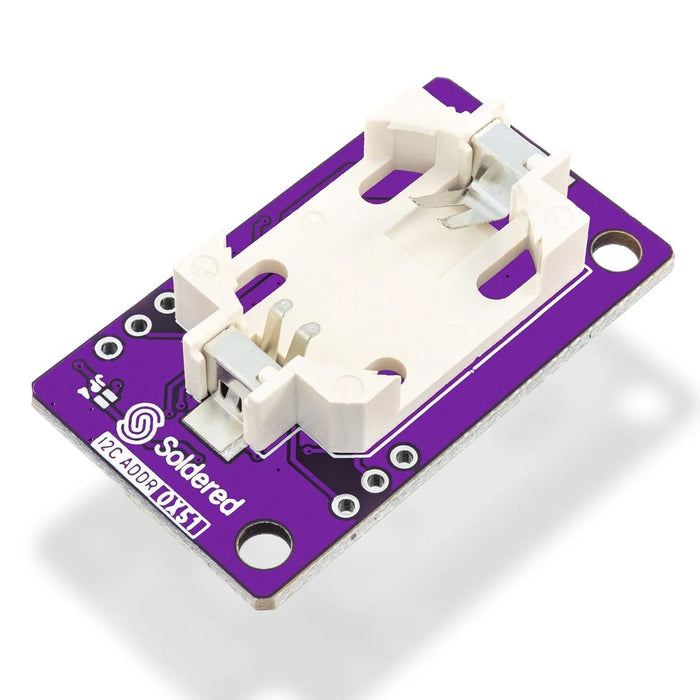

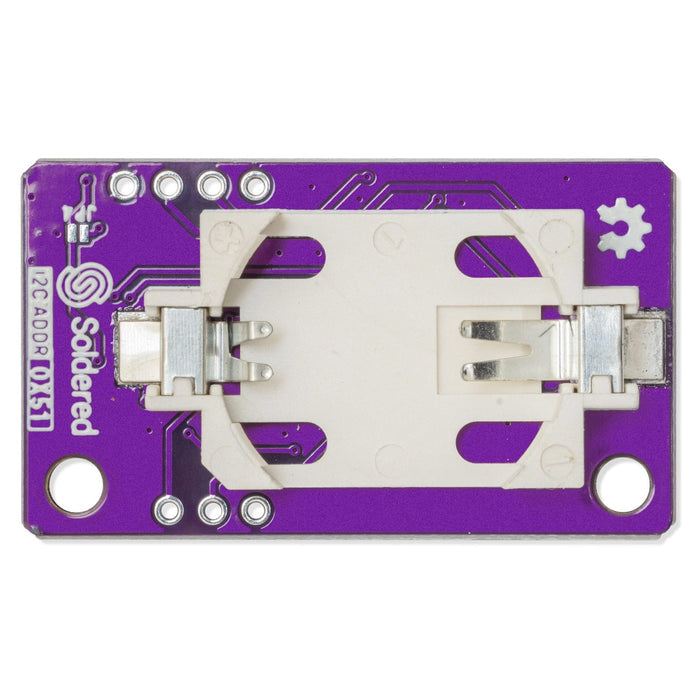

It has a built-in CR2032 battery holder (battery not included) and even if power is lost, real-time tracking won't be affected.

Features

• Precise real-time clock and date tracking
• Superior accuracy for long-term timekeeping compared to microcontroller clocks
• Extremely low power consumption
• Built-in alarm functionality with interrupt pin
• Enables microcontroller sleep mode for reduced power draw
• Integrated battery holder for backup power
• Maintains accurate time during power loss
• Battery not included


Specifications

• Communication: I2C
• RTC IC: PCF85063A
• Voltage: 0.9V - 5.5V
• Qwiic connector
• Dimensions: 38 x 22 mm

Resources

• Full product documentation
• Pinout drawing
• Hardware details
• Arduino library documentation
• Getting started with Arduino
• Arduino library

Package Contents

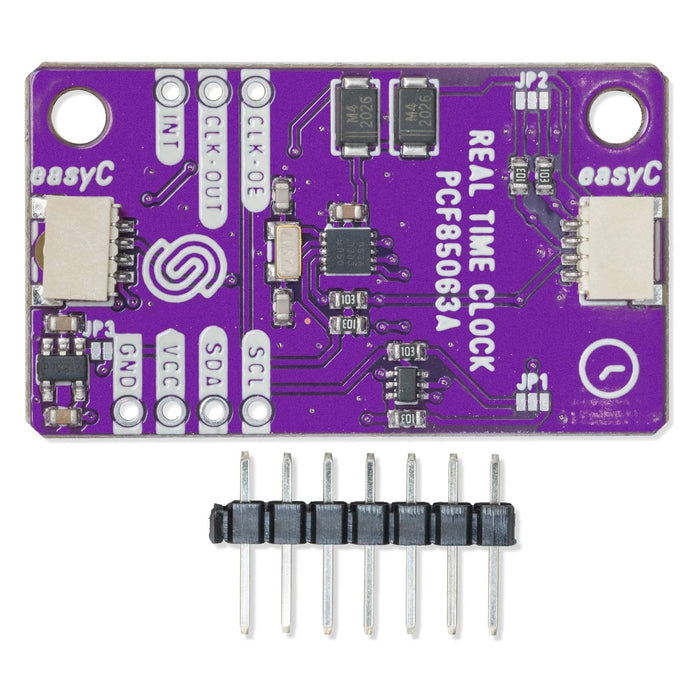

• 1x Real Time Clock RTC PCF85063A Breakout
